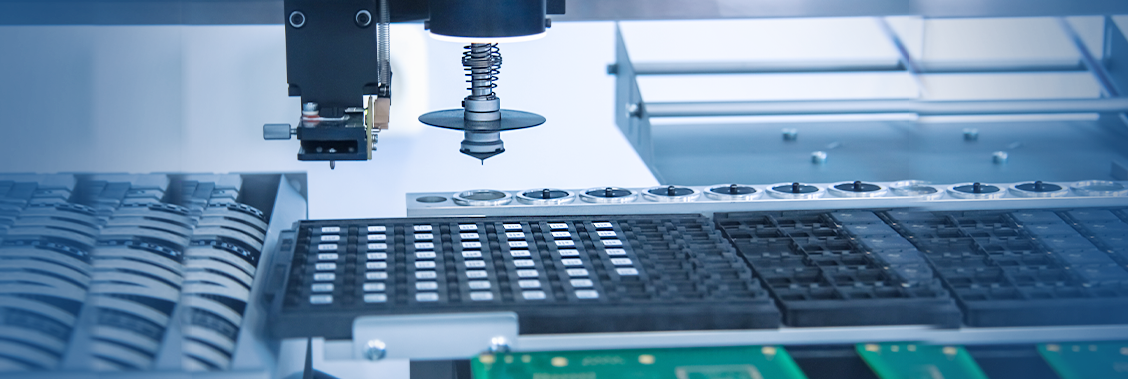

PCB Fabrication and Assembly

  • 1000+ designs

  • Highly reliable and robust hardware

  • Stringent quality control

  • Worldwide presence

Key Expertise Areas

PCB Assembly Highlights

  • Component size: Passive - 0402, BGA 0.3mm pitch, fine pitch parts 0.25mm pitch
  • Strong fabrication partnership with worldwide presence
  • BOM procurement and supply chain management
  • Surface mount, through hole and Hybrid model of PCB Assembly
  • Laser cut stencils for high reliability
  • Customized functional test

PCB Fabrication Highlights

  • From 2 to 32 layers
  • Minimum hole size of 0.5 & 0.6 mil
  • Minimum Slot size of 0.5 & 0.6 mil
  • Annular ring 2 mil
  • Minimum spacing and track width 3/3 mil
  • Minimum soldermask clearance 1 mil
  • Minimum SMD/BGA pitch 16 mil
  • Aspect Ratio 16:1
  • Via filling / Blind and burried via
  • Impedance matching

  • INFRASTRUCTURE

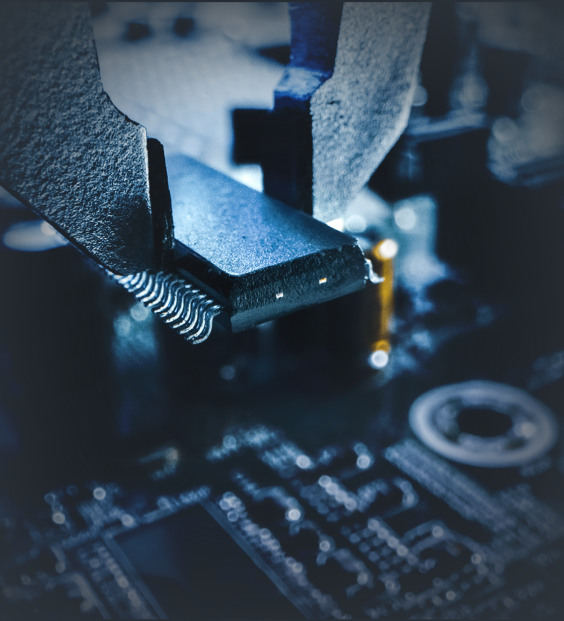

    PCB Manufacturing

    - Strong fab partnership with worldwide presence

    - In-house assembly capability

  • INFRASTRUCTURE

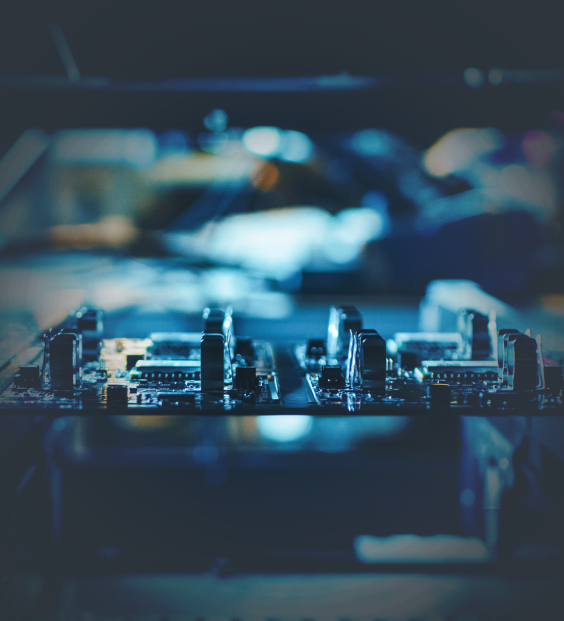

    Quality control

    - Flying probe test

    - Functional test
